misc/image.h File Reference

Image utility routines. More...

#include <glt/config.h>
#include <misc/config.h>
#include <string>
#include <iosfwd>
#include <vector>

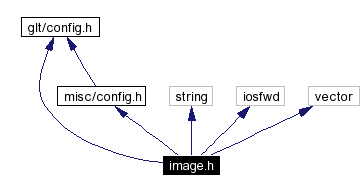

Include dependency graph for image.h:

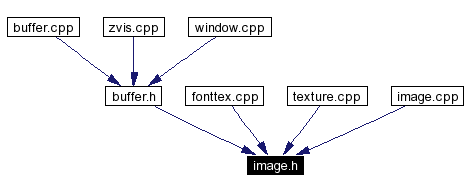

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
bool	isGreyscale (const std::string &rgb)
	Is an RGB buffer greyscale?
bool	is256Colors (const std::string &rgb)
	Is an RGB buffer 256 colors or less?
void	getChannel (std::string &dest, const std::string &src, const uint32 size, const uint32 channel)
	Extract channel from image buffer.
void	rgb2Indexed (std::string &dest, const std::string &rgb)
	Convert RGB data to indexed.
void	indexed2rgb (std::string &dest, const std::string &indexed)
	Convert indexed data to RGB.
void	flipImage (std::string &dest, const std::string &src, const int width, const int height)
	Flip image vertically.
void	mirrorImage (std::string &dest, const std::string &src, const int width, const int height)
	Mirror image horizontally.
void	adjustGamma (std::string &image, const double gamma)
	Adjust image gamma.
void	adjustHSV (std::string &image, const int width, const int height, const real hue, const real saturation, const real value)
	Adjust image hue, saturation and brightness.
bool	stitchImages (std::string &image, const int dx, const int dy, const std::vector< std::string > &src, const int lineSize)
	Stitch tiled images.
bool	decode (uint32 &width, uint32 &height, std::string &image, const std::string &data)
	Decode image data from PPM, BMP, TGA and PNG.
bool	decodePPM (std::string &type, uint32 &width, uint32 &height, std::string &image, const std::string &data)
	Decode image data from PPM.
bool	decodeBMP (uint32 &width, uint32 &height, std::string &image, const std::string &data)
	Decode image data from BMP.
bool	decodeTGA (uint32 &width, uint32 &height, std::string &image, const std::string &data)
	Decode image data from TGA.
bool	encodePPM (std::string &data, const uint32 width, const uint32 height, const std::string &image)
	Encode image data as RGB unix PPM or PGM.
bool	encodeBMP (std::string &data, const uint32 width, const uint32 height, const std::string &image)
	Encode image data as RGB Windows BMP.
bool	encodeTGA (std::string &data, const uint32 width, const uint32 height, const std::string &image)
	Encode image data as RGB TGA.

---

Detailed Description

Image utility routines.

Author:

Nigel Stewart, RMIT (nigels.com@gmail.com)

Todo:

Image test program(s)

These routines are not intended as a general-purpose image viewing, output or image-processing package. The priority here is to support image formats that are most likely to be used in the context of OpenGL texture mapping.

Here are a few notes about the relative advantages of each type of image encoding.

PPM is simple to read and write - greyscale and RGB variants are useful for input and output, commonly used on the UNIX platform. PPM's are not compressed, and are not lossy.

TGA come in uncompressed or compressed variants, and support indexed, greyscale, or 16/24/32 bit RGB and RGBA pixel data. TGA's support an alpha (transparency) channel.

BMP is the standard image format for the Windows platform. The structure of BMP files is relatively convoluted, but similar to TGA.

Definition in file image.h.

---

Function Documentation

void mirrorImage (  std::string &    dest, const std::string &    src, const int    width, const int    height )

Mirror image horizontally. Parameters: dest  Destination buffer src  Source buffer width  Width of image (pixels) height  Height of image (pixels) Definition at line 167 of file image.cpp.

void adjustGamma (  std::string &    image, const double    gamma )

Adjust image gamma. Parameters: image  Image gamma  Gamma co-efficient Definition at line 189 of file image.cpp. References byte. Referenced by GltTexture::init().

void adjustHSV (  std::string &    image, const int    width, const int    height, const real    hue, const real    saturation, const real    value )

Adjust image hue, saturation and brightness. Parameters: image  Image width  Width of image (pixels) height  Height of image (pixels) hue  Hue adjustment saturation  Saturation adjustment value  Value adjustment Definition at line 204 of file image.cpp. References GltColor::blue(), byte, GltColor::fromHSV(), GltColor::green(), real, GltColor::red(), and GltColor::toHSV(). Referenced by GltTexture::init().

bool decode (  uint32 &    width, uint32 &    height, std::string &    image, const std::string &    data )

Decode image data from PPM, BMP, TGA and PNG. Parameters: width  Image width height  Image height image  Raw image data data  Source data buffer Definition at line 277 of file image.cpp. References decodeBMP(), decodePPM(), decodeTGA(), and uint32.

---
